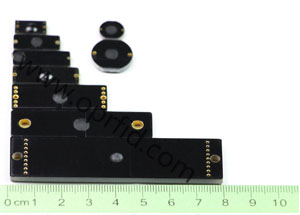

Anti-metal tags with a special magnetic properties of absorbing materials packaged into an electronic tags,solves the problem of electronic label use can not be attached to the metal surface.Products can be waterproof,acid proof,alkali proof,anti-collision,can be used outdoors.
The anti-metal tag attached to the metal read range than not attached to the metal read farther.PCB /FR4 Material UHF on-metal tag read range performance to meet or exceed its long-10cm around than other tags.Moderate size,is one of the widely used tags.
Characteristic: the surface is smooth,not because the chip packaging brings prominent,reading distance,flexible installation is convenient
A magnet adsorbing metal function;high stability,high performance price ratio,the surface can paste any printing or printing content labels,surface can also do fine screen printing, Can be personalized printing pattern,LOGO,coding,etc..ODM and OEM products according to customer's demand.
|
Tag Material:
|
PCB (FR4/Glass epoxy Layer)
|
|
Antenna Material:
|
Glod + copper
|
|
Frequency:
|
860Mhz-960Mhz
|
|
Protocol:
|
EPC Class1 Gen2, ISO18000-6C
|
|
RFID Chip:
|
IMPINJ M4, or other
|
|
Memory:
|
96 Bit EPC /512 Bit User
|
|
Work Temperature:
|
-20℃ to +140℃
|
|
Storage Temperature:
|
-30℃ to +160℃
|
|
Personalization:
|
Print LOGO, serial number etc
|
|
Protection:
|
IP68
|
|
Other:
|
RoHS
|
|
Mounting:
|
with 3M Glue or hole
|
|
metal surface
|
|
Application :
|
Warehouse,Logistics management
|
|
IT asset management
|
|
Inventory management
|
|
Assets management
|
|
Automotive component tracking
|
|
Industrial manufacturing
|
|
Number
|
size (mm)
|
Chip position (thickness)
|
Read distance
(1W, 30db, Handheld,air)
|
Weight(g)
|
Note
|
|
OP0606
|
6*6*2.5mm
|
3.5mm
|
15cm
|
0.2
|
without hole and glue
|
|
OP0307
|
3*7*2mm
|
3mm
|
15cm
|
0.2
|
without hole and glue
|
|
OP105
|
10*5*2.5mm
|
3.5mm
|
25cm
|
0.3
|
without hole and glue
|
|
OP103
|
10*3.5*1.3mm
|
2mm
|
15cm
|
0.3
|
without hole and glue
|
|
OPD10
|
D10mm*2mm
|
2.9mm
|
30cm
|
0.4
|
with glue
|
|
OPD14
|
D14mm*3mm
|
3.5mm
|
40cm
|
0.8
|
with glue
|
|
OPD16
|
D16mm*2.5nn
|
3.5mm
|
60cm
|
1.1
|
with glue
|
|
OP1207
|
12.5*7.5*2.5mm
|
3.5mm
|
35cm
|
0.6
|
with glue
|
|
OP1504
|
15*4*2.5mm
|
3.5mm
|
50cm
|
0.8
|
with glue
|
|
OP1808
|
18*8*2.5mm
|
3.5mm
|
50cm
|
1.0
|
with glue
|
|
OP1813
|
18*13*2.5mm
|
3.5mm
|
70cm
|
1.3
|
with glue
|
|
OP2208
|
22*8*2.5mm
|
3.5mm
|
80cm
|
1.1
|
with glue
|
|
OP2509
|
25*9*2.5mm
|
3.5mm
|
100cm
|
1.4
|
with glue
|
|
OP2510
|
25*10*1.5mm
|
2.5mm
|
120cm
|
1.4
|
with glue
|
|
OP2525
|
25*25*3mm
|
3.5mm
|
130cm
|
3.0
|
with glue
|
|
OP3005
|
30*5*1mm
|
2.5mm
|
30cm
|
1.0
|
with glue
|
|
OP3009
|
30*9*3mm
|
3.5mm
|
120cm
|
2.1
|
with glue
|
|
OP3232
|
32*32*3mm
|
3.5mm
|
150cm
|
3.5
|
with glue
|
|
OP3310
|
33*10*3mm
|
3.5mm
|
125cm
|
2.3
|
with glue
|
|
OP3613
|
36*13*2.5mm
|
3.5mm
|
130cm
|
3.0
|
with glue
|
|
OP4010
|
40*10*2.5mm
|
3.5mm
|
150cm
|
4.0
|
with hole and glue
|
|
OP5025
|
50*25*1mm
|
2.5mm
|
100cm
|
3.5
|
with hole and glue
|
|
OP5213
|
52*13*2.5mm
|
3.5mm
|
250cm
|
5.0
|
with hole and glue
|
|
OP5233
|
52*33*2.5mm
|
3.3mm
|
280cm
|
8.0
|
with hole and glue
|
|
OP6030
|
60*30*2.5mm
|
3.3mm
|
300cm
|
9.0
|
with hole and glue
|
|
OP7020
|
70*20*3mm
|
3.5mm
|
350cm
|
10.0
|
with hole and glue
|
|
OP8006
|
80*6*2.5mm
|
3.3mm
|
160cm
|
3.0
|
with hole and glue
|
|
OP8010
|
80*10*1.6mm
|
2.5mm
|
130cm
|
3.0
|
with hole and glue
|
|
OP8020
|
80*20*2.5mm
|
3.5mm
|
400cm
|
12.0
|
with hole and glue
|
|
OP9011
|
90*11*3mm
|
3.5mm
|
350cm
|
15.0
|
with hole and glue
|
|
OP9525
|
95*25*2.5mm
|
3.5mm
|
500cm
|
16.5
|
with hole and glue
|
* Any question or inquiry about RFID card and RFID related products, please send email to info@oprfid.com, we will reply you within 24 hours, thanks
