ABS UHF Anti Metal RFID Tags & UHF Windshield Tag for car parking,Truck Tracking,vechile tracking

2017-2-10 View:
ABS UHF Anti Metal RFID Tags & UHF Windshield Tag for car parking,Truck Tracking,vechile tracking

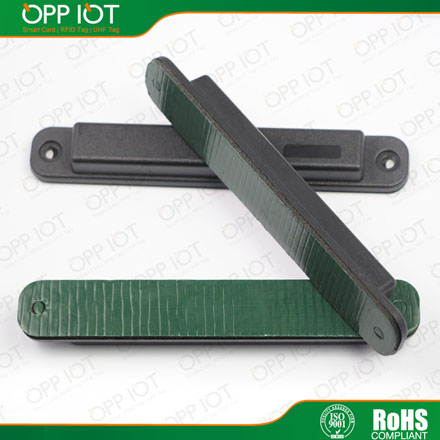

ABS Material UHF Anti Metal RFID Tag is a passive UHF transponder offering long range identification up to 4 meters [12 ft.].
ABS Material UHF Anti Metal RFID Tag offers cost effective long range vehicle identification installations requiring tamperproof mounting.
ABS Material UHF Anti Metal RFID Tag is an effective solution for installations where the tag needs to be mounted onto the exterior of the vehicle.

Key features:
•Designed for outdoor use
•Strong impact resistance
•Identification up to 4 meters [12 ft]
•High performance on metal and non-metal surfaces
•Passive battery free tags
•Highly chemical resistant
•Water and shock proof
•EPC Gen 2 compatible

1.Offering long range identification up to 4 meters(12 ft.) or longer
2.Passive battery free tags
3.ABS material

ABS Material UHF Anti Metal RFID Tag Description:
Waterproof, Dustproof: IP67
Material: ABS
Operating frequency: 860-960MHz
User Memory: 512 bits
Size: 135mm×22mm×12mm (thickness), Hole dimeter:4mm, Distance between two holes:120mm
Chip: Alien Higgs-3 (Option: Alien Higgs-4/Monza 4D/Monza 4E/Monza 4QT)
Available reading distance: up to 15 meters, depend on your reader
Available operation life: ≥10years
Working temperature range: -25C to 85C
Standard:ISO18000-6C
Mounting: Fixed with screw or label adhesive

The UHF Windshield Tag offers cost effective long range vehicle identification for parking applications. Typical
applications include vehicle access to car parks, business parks, gated communities, condominiums, campus, airports, etc.

ABS Material UHF Anti Metal RFID Tag can stick on a trailer of Truck, the windshield of a car or a truck, pallet, or other metal surface tracking and access control.
It has strong glue, which can stick very strongly on the metal surface

It has two holes on both sides. It can attach to a metal surface by two screws, easy and durable for outdoor use.
