>> RFID Tags >> High Temperature and Acid Alkali Resistant Tags

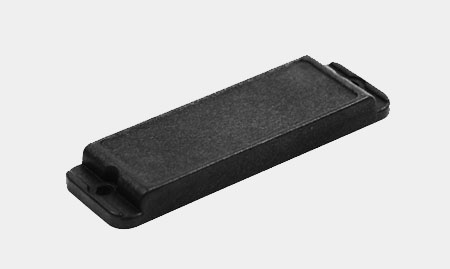

High Temperature and Acid Alkali Resistant Tags



The high temperature resistant RFID tag - devil-8000 operates in the UHF frequency band. It is specially designed to withstand very difficult environments, it has an IP69X protection level.
1)High Temperature Resistant
Withstand high temperature up to 300°С, withstand 260°С for long time.
2)Acid Alkali Resistant
Anti acid and alkali, can be used in harsh environment, strong acid and alkali.
3)Applied on Metal Surface
The read range on metal surfaces can be up to 4.2m.

High Temperature and Acid Alkali Resistant Tags

Functional Specifications:
RFID Protocol EPC Class1 Gen2, ISO18000-6C
Frequency: US 902-928MHz, EU 865-868MHz
IC type Alien Higgs-3
Memory EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles: 100,000times
Data Retention: Up to 50 Years
Applicable Surface: Metal Surfaces
Read Range(On Metal)
:(Fix Reader)
Up to 420cm - (US) 902-928MHz, on metal
Up to 330cm - (EU) 865-868MHz, on metal
Read Range(On Metal)
:(Handheld Reader):
Up to 280cm - (US) 902-928MHz, on metal
Up to 200cm - (EU) 865-868MHz, on metal
Warranty: 1 Year
Physical Specification:
Size: 83.4x27.1mm, (Hole: D4mmx2)
Thickness: 8.5mm
Material: PEEK
Colour: Black
Mounting Methods: Screw-Hexagon socket head cap screw (M3 / M4)
Weight: 24g
Enivironmenal Specification:
IP Rating: IP68, IP69X
Storage Temperature: -60°С to +260°С, +300°С 100 hours
Operation Temperature: 40°С to +200°С
Certifications: Reach Approved, RoHS Approved, CE Approved, ATEX Approved.
Withstand PH: PH0 to PH14, and all other liquid that PEEK can handle with
Compression strength: 150Mpa

Acid Alkali Resistant Tag Size

Download Devil-8000 PDF
