>> RFID Tags >> RFID Tire Tag

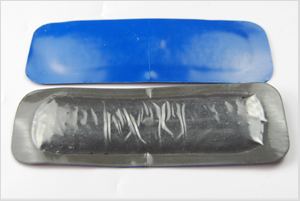

RFID Tire Tag

UHF RFID vulcanization tire tag, widely use in the tire factory.
The UHF RFID vulcanization Tire Tag are applied in storing, servicing, anti-stealing and recollecting the tires, for inventory management. The RFID tire tags our company designs are applied in storing, servicing, anti-stealing and recollecting the tires. This type tag owns low price. They are easy to install. When produce the tires, the tags can be inserted in the mold of the tires.

Frequency: 860~960MHz
Chip: Alien/higgs 3, or NXP
Working Agreement: ISO18000-6C
Memory: EPC 96bit, User memory 512 bit
Working mode: Passive
Data Store: >10Years
R/W more than 100K times
Reading Distacne: 0~10m
Tag size: 105*35*0.5mm

rfid tire tag
RFID Tire Tag
RFID Tire Tag Use For tire identification and tire tracking
The dimensions of this initial tire ID card, something like a tire repair patch, the patch tags are said to be 105mm in length and 35mm in width. Once inserted (or patch) into a tire, the tire will have a unique identification number in the world.

The RFID tire tag is robust can stand high crash and pressure during the tire running in the vehicle. The tire with this tag can be tracked via a handhold reading device or fixed reader. Any reader compatible with EPC G2 ISO186000-C protocol can work great with the tag. The tag has the user memory which can be written with some other information such as production time, batch, reseller, retreading etc. Any information of the tire will be recorded and store in the database for track the tire production and using record in the whole life of the tire.

Pre Product
Anti-metal Label
Anti-Metal Label
Next Product
RFID Coin Tag
RFID Coin Tag

* Any question or inquiry about RFID Tire Tag and RFID related products, please send email to info@oprfid.com, we will reply you within 24 hours, thanks
        Copyright | Privacy Statement | RFID Solution | RFID Knowledge | Sitemap
German Spanish French Greek Italia Japanese Dutch Polish Portuguese Russian English facebook blogger linkedin twitter
        UHF Gen 2 RFID tire tag is designed for embedding in the tire mould prior to the manufacture and curing of the tire. It survives the high temperatures encountered in the tire curing process and is robust enough to remain operational throughout the operating life of the tire. The EPC Class 1 Gen 2 RFID tag is attached by a permanent adhesive to the inside tire wall with a special formulated dual cure chemical or heat process. It can be built into truck tires that can be recapped several times. OPrfid.com, a professional RFID tags manufacturer company, recently has been reported provide RFID tire tags for tire management system in the tire factory and retreating company.
