>> UHF Anti-metal Tags >> High Temperature UHF RFID Anti-Metal Tag


High Temperature UHF RFID Anti-Metal Tag



UHF RFID Anti-metal Tag Specification High Temperature Resistance
High Temperature UHF Anti-metal Tag High Temperature UHF Anti-metal Tags
OPP4215 is the anti-metal tag designed for hostile environment, which could resist corrosion and high temperature for a very long time period. The heat withstanding is up to 250 degree centigrade.

OPP4215 passed the following tests: high temperature test, alternating temperature test, corrosion (acidity/ alkaline) testing, vibration test, Ultrasonic washing test.

And to make sure each shipment tags with excellent reliability and performance consistency , we do a series of tests before shipment,include testing by European tags comprehensive test instrument, encoding test of EPC and User memory.

Mounting options on metal surface: 3M glue/ Screw/Rivets/Double sides adhesive that adaptive to mounting conditions.
Physical Specifi Cation
RFID Protocol EPC Class1 Gen2, ISO18000-6C
Frequency US 902-928MHz, EU 865-868MHz, or Customs
IC type Alien Higgs-4
Memory EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
Write Cycles 100,000times
Functionality Read/wirte
Data Retention Up to 50 Years
Metarial PTFE
Weight 2.2g/pc
Work Temperature -40℃ to +150℃
Storage Temperature -55℃ to +200℃
Peak value (280℃ for 50 minutes, 250℃ for 150minutes)

Dimensions
Applicable Metal Surfaces
Size 42mm*15mm*2.1mm
Hole size 4.0mm*2

Reliability Test
Temperature Test (working 10hours in 180℃)
IP Classifi cation: IP68

RF Performance
Read Range(On Metal) :
(Fix Reader)
Up to 680cm - (US) 902-928MHz, on metal
Up to 700cm - (EU) 865-868MHz, on metal
Read Range(On Metal) :
(Handheld Reader)
Up to 530cm - (US) 902-928MHz, on metal
Up to 550cm - (EU) 865-868MHz, on metal


OPP4215U1 Metal Tag Frequecy

OPP4215E1 Anti-metal Tag Frequecy
Installation and Polarization:

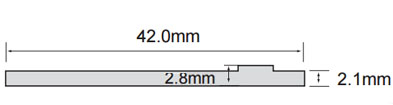

High Temperature UHF Anti-metal Tag Size
More details about High temperature UHF RFID tags OPP4215 view: http://www.oppiot.com/uhf-metal-tags-dolphin-series-opp4215.html
